QWinOut F450 APM2.8 6M GPS DIY RC Drone Kit 450mm Frame RC Quadcopter 4-Axle UFO Unassembly Kit for Beginners (Basic Version)

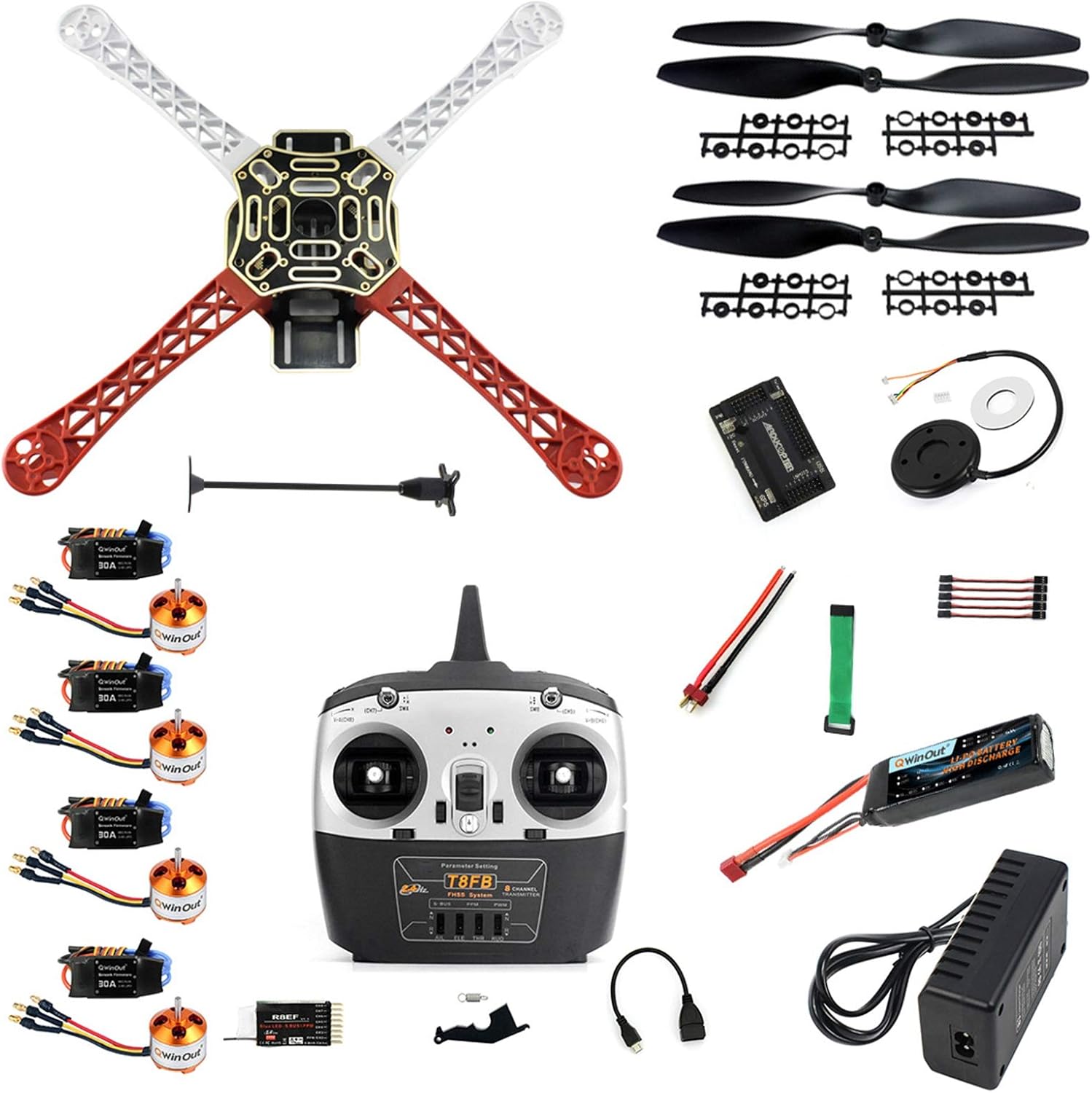

Basic Version: 4x 1000KV Brushless motor A221213T 4x simonk firmware 30A ESC with BEC 5V output support 2-4S lipo 1x F450-V2 4-axis frame with circuit board 2x Multi-axis 1045 CW and CCW propellers 10*4.5 1x APM2.8 flight control with compass (straight needle) 1x GPS7M with electronic compass-APM interface 1x GPS Folding Antenna Mount Holder 5x 20CM Hook & Loop Fastening Tape 5x MWC cable (signal cables) 1x T Plug Male Connector With 11.5CM Silicone Wire 12x 3.5mm Bullet Connector banana plug with TX&RX Version add: 1* Radiolink T8FB 2.4GHz 8Ch RC Transmitter and R8EH Receiver with Battery&Charger add: 1* 11.1V 2200mah 20c lipo battery with Charger Full Set add: 1* Radiolink T8FB 2.4GHz 8Ch RC Transmitter and R8EH Receiver 1* 11.1V 2200mah 20c lipo battery with Charger Parameters: Brand: QWinOut Wheelbase: 450MM Flight Control: APM 2.8 Multicopter FC Board 2.5 2.6 2.8 Built-in Compass Straight pin Motor: A2212 1000KV ESC: 30A Paddle: 1045 2-blade paddle Battery / Power: 11.1V 2200mah 20c (Optional) Flight time: 8-12 minutes or so (the specific flight time depends on the movement of your flight) Remote control distance: 500 meters in the air (the actual flight distance is related to the environment)(Optional) Loading weight: less than 500g

• All soldering part has been finished. All you need is assembly.
• F450 Multicopter Nylon Fiber Airframe kit Strong Smooth for DIY Drone Kit, Colored arms for orientation to keep you flying in the right direction, and large mounting tabs on main frame bottom plate for easy camera mounting.
• 30A Brushless ESC Speed Controller have been set up the program: simonk firmware, do not need additional program.

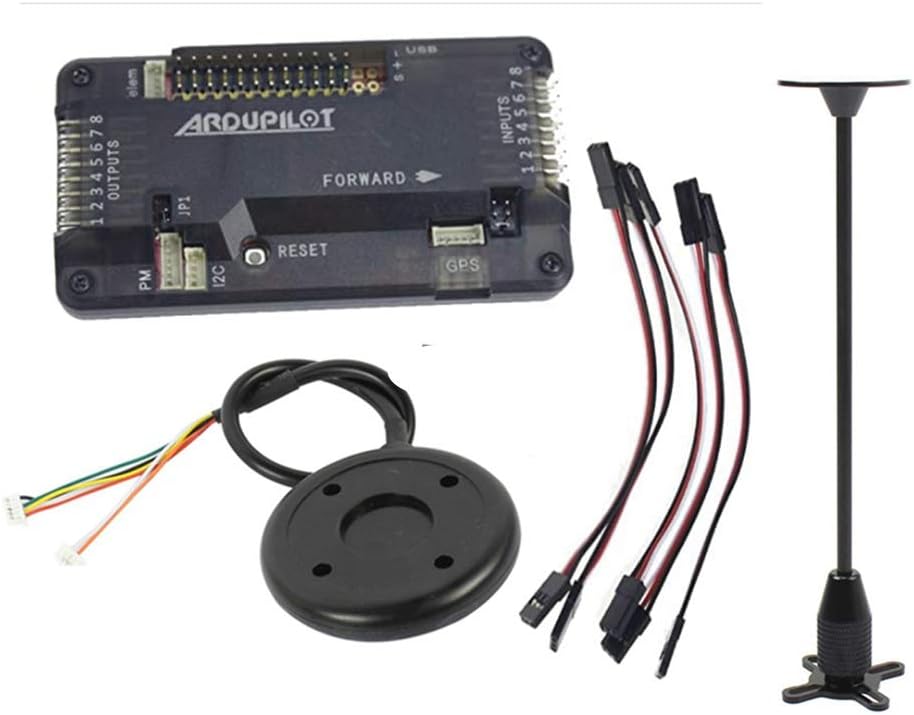

• APM 2.8 Flight Controller Build-In Compass, 3-axis Gyro, Accelerometer and Magnetometer, Along with a High-performance Barometer with Protective Case But No Shock Absorber! APM is An Open Source Flight Control, Can You Play APM Well Depend On Individual Ability.
• Player Must Have Ability Of Basic Understanding Of Monolithic Integrated Circuit, c-Language, Knowledge of Electrical,Mechanical, and Also Needs a Certain Degree Of Mental Capacity, Financial and Material Resources, Energy Support. Any questions, please keep in touch with us.
